Pin assembly tool
A bench fixture for pressing pins in straight and to the right depth

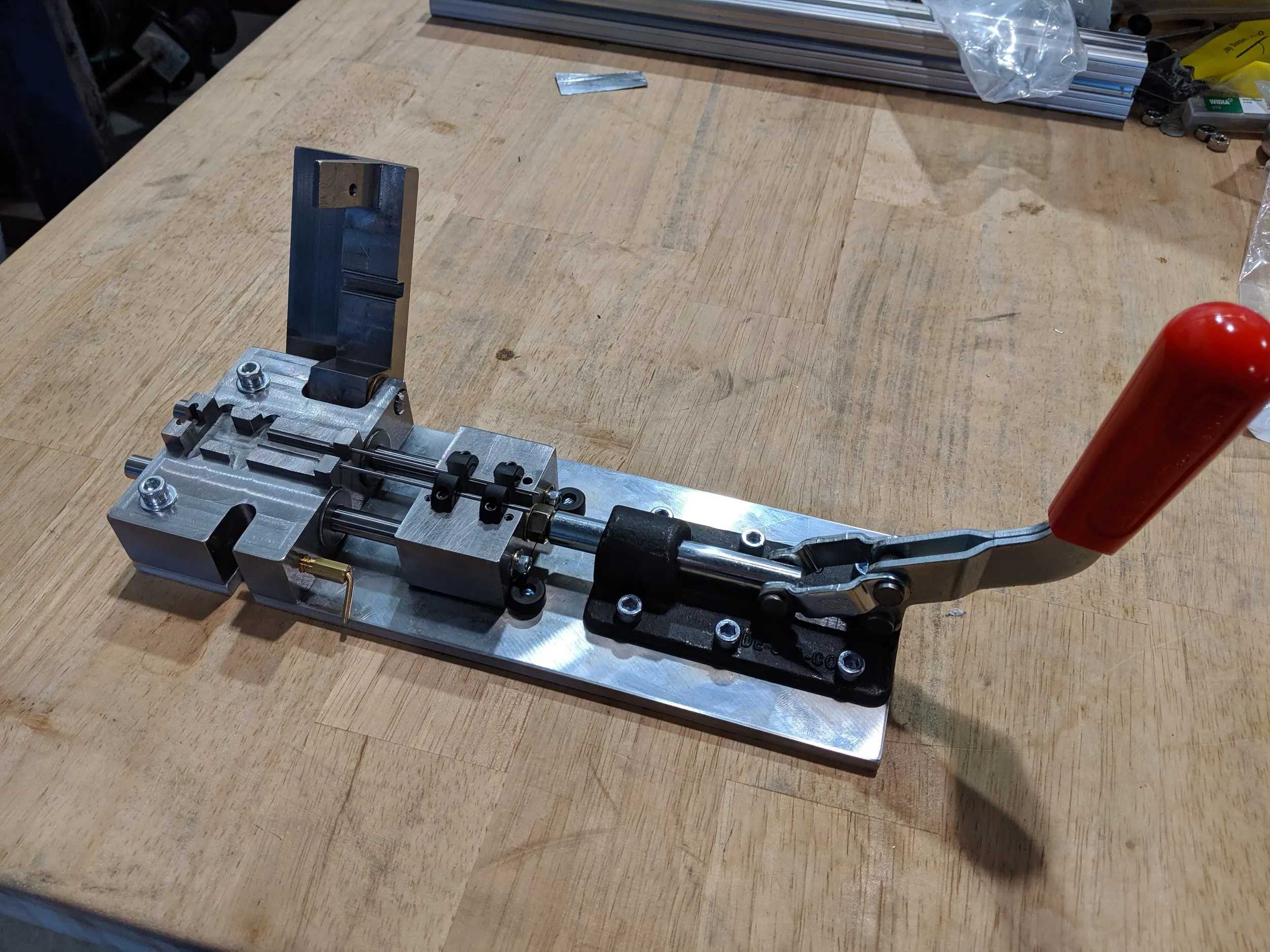

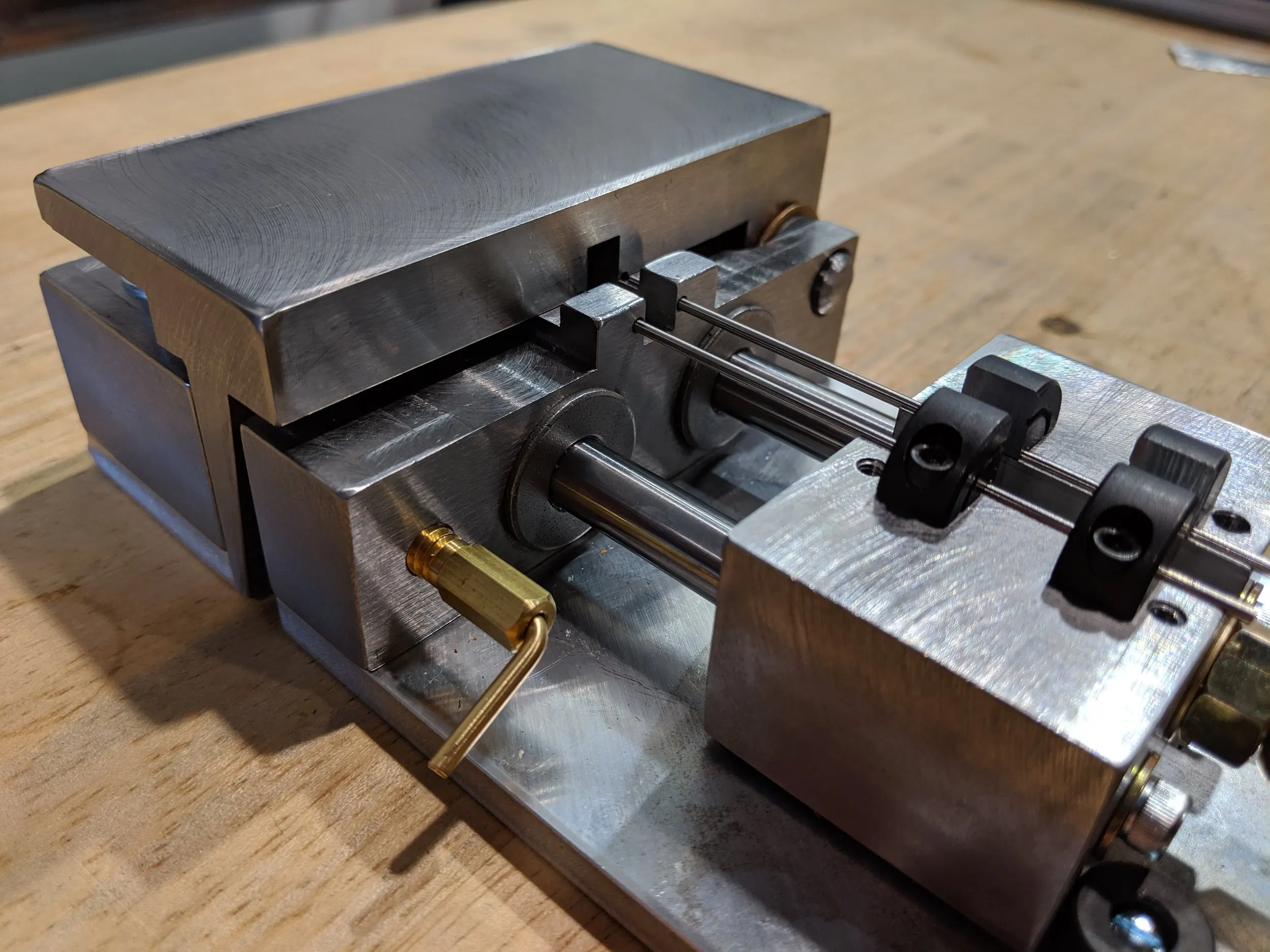

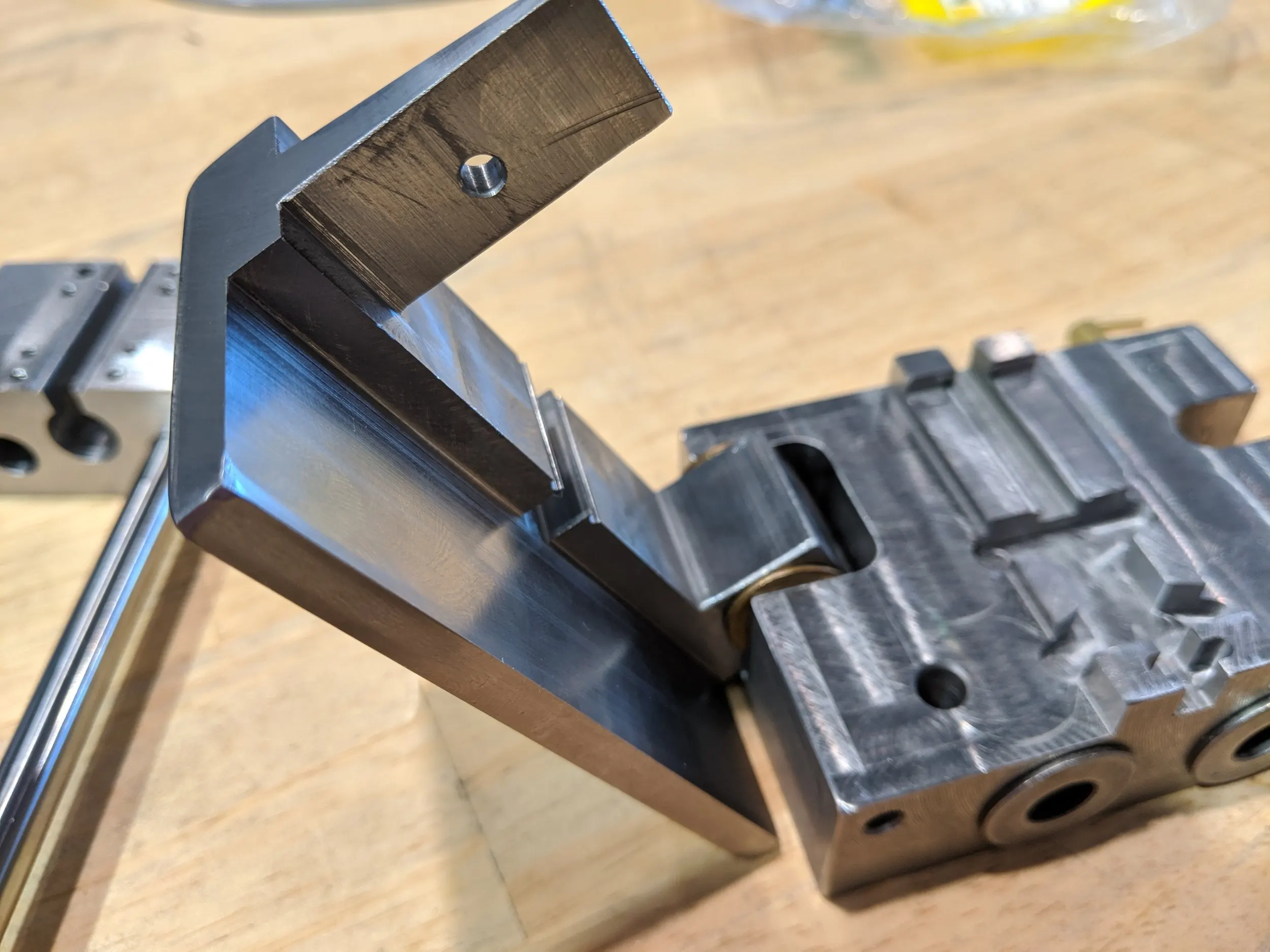

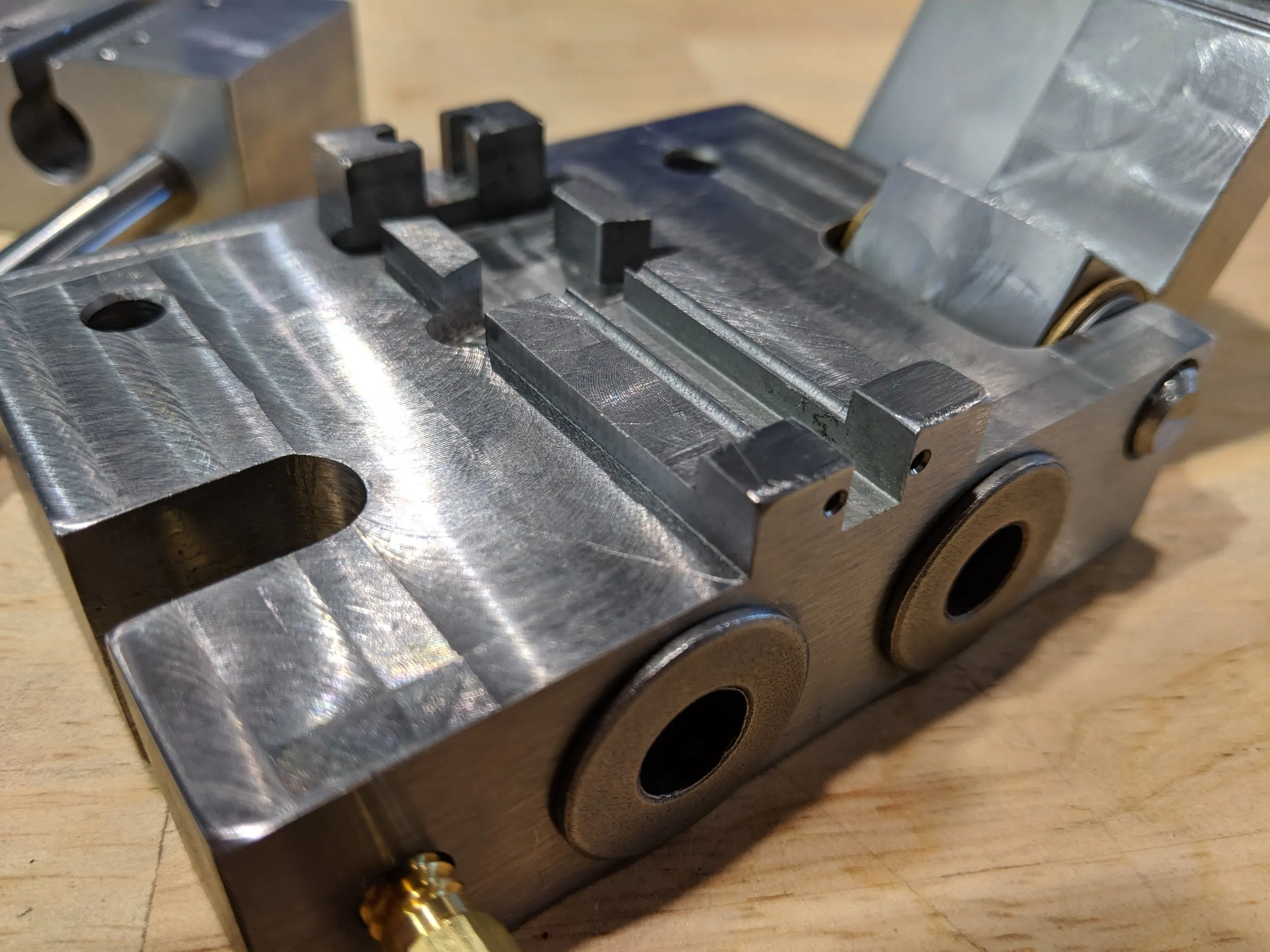

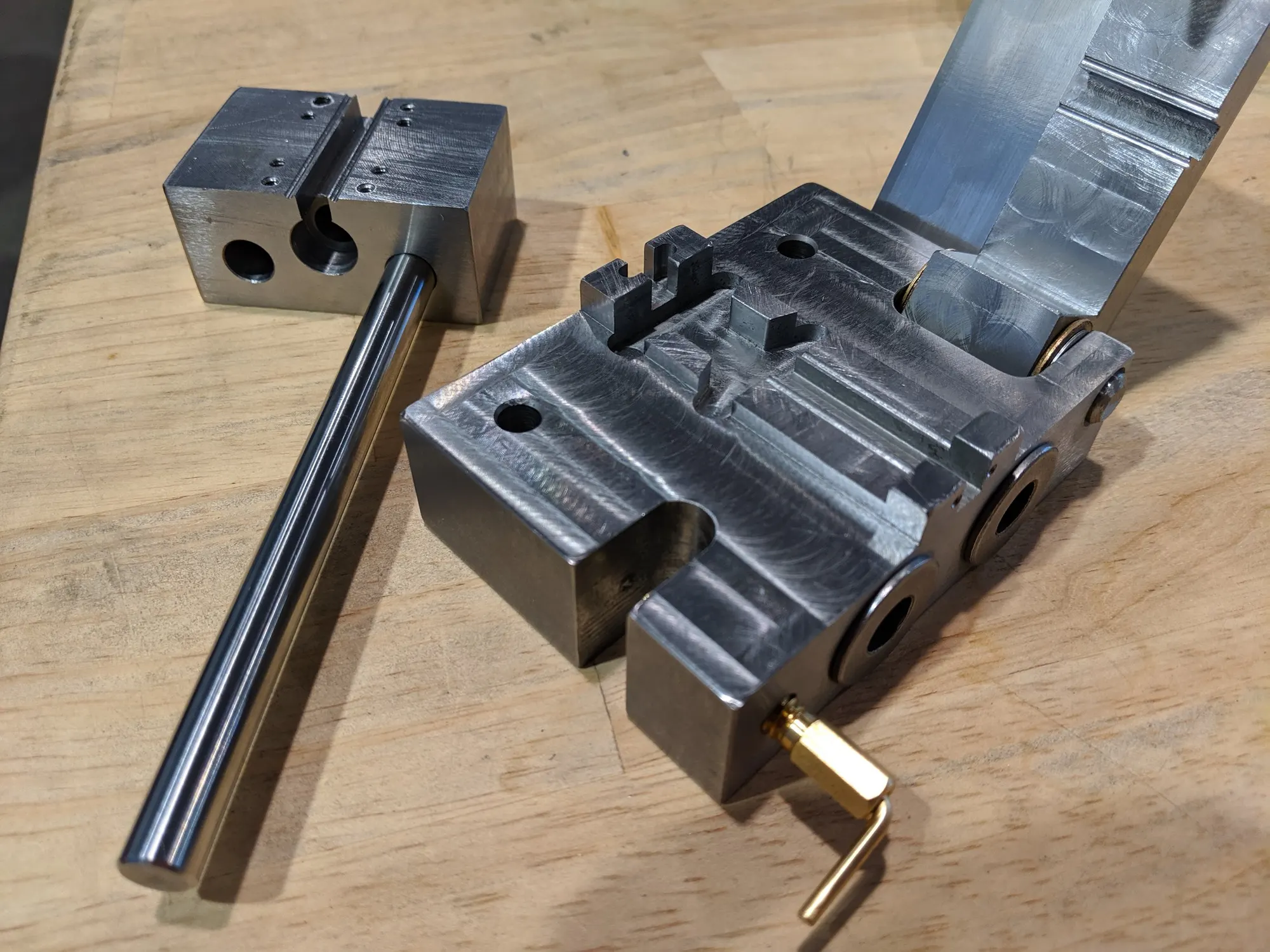

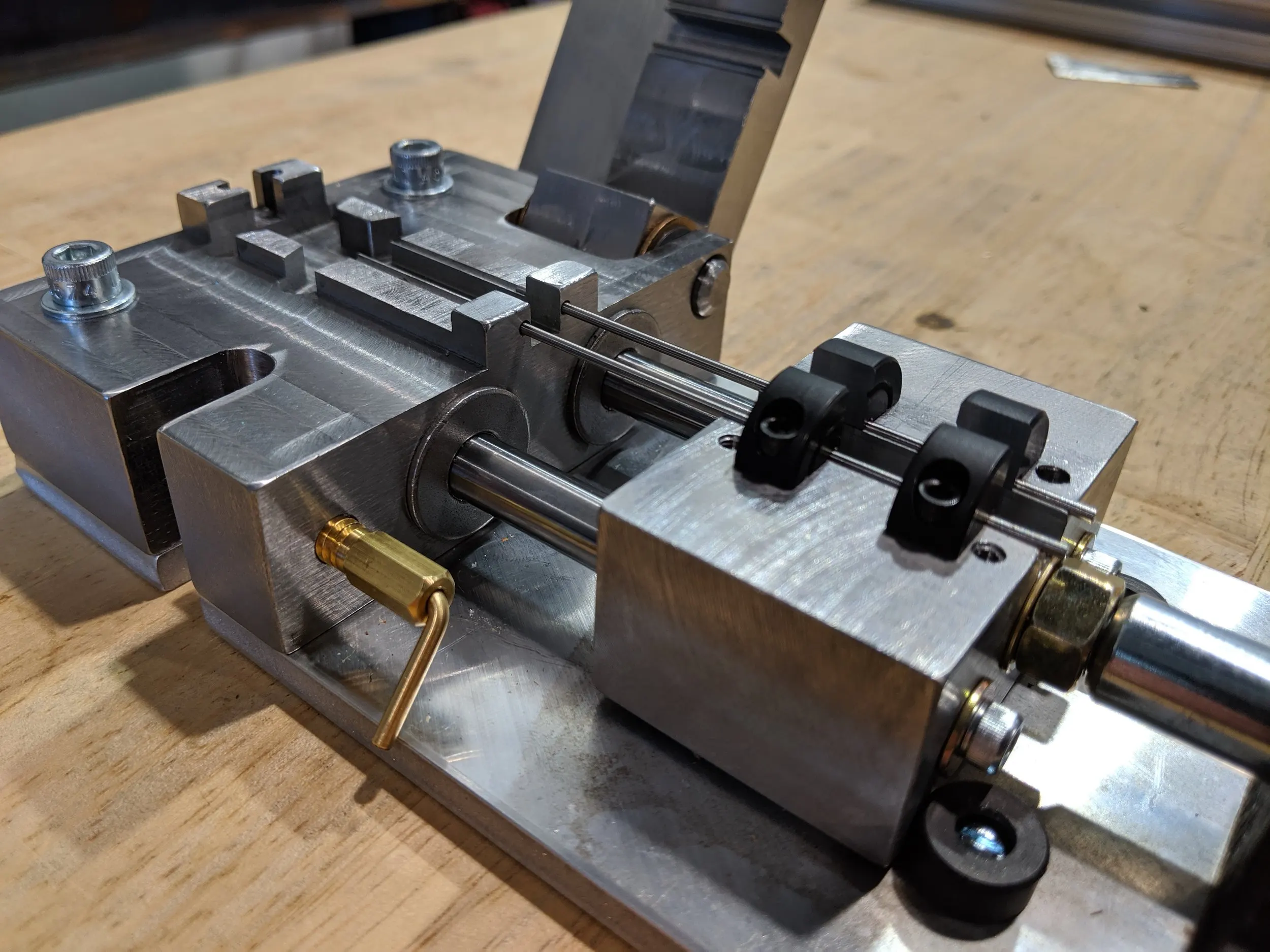

The part sits in a machined fixture and a clamshell cover closes over it. A toggle clamp then drives a slide that presses the pins in square, with a hard stop to set the depth.
